Rehook AIR

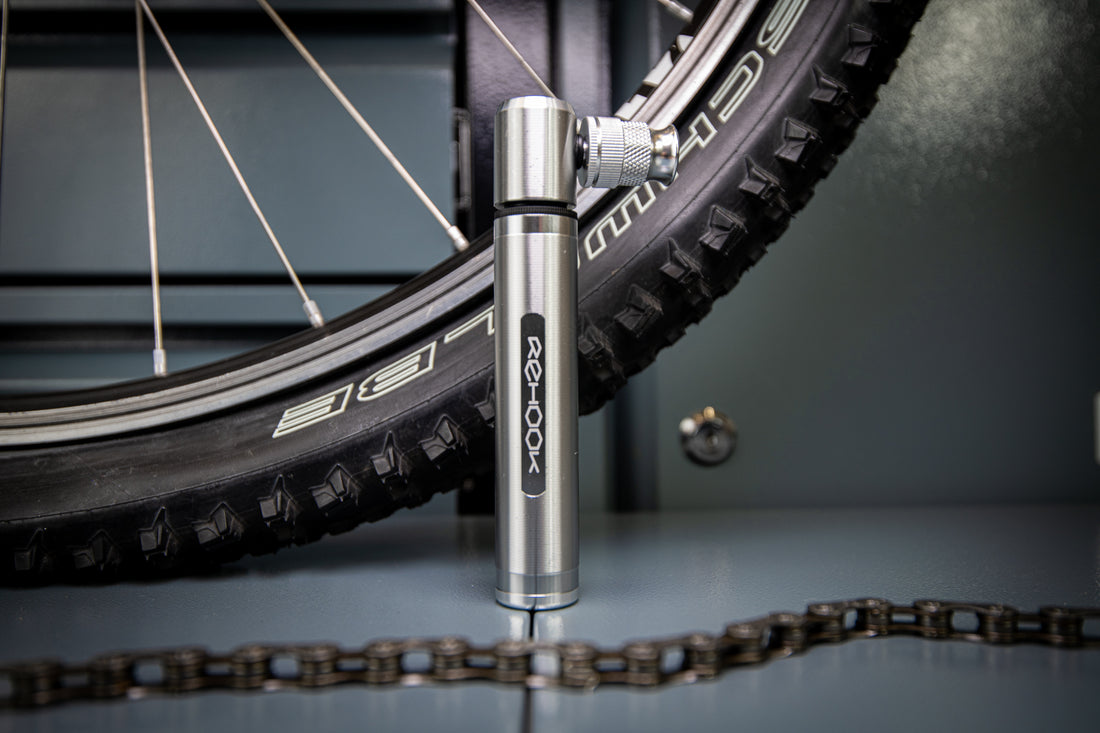

The Rehook AIR mini universal bike pump is a compact bicycle pump which packs a punch. It has two valve heads, Schrader & Presta, and is super lightweight making it great for any cyclist to take out riding.
Bike valves
Rehook AIR includes two bike valve heads, to fit any inner tube, ensuring you'll never be stuck with a flat.
Attach the valve
Remove the dust cap from the valve.
Screw the valve head onto the valve.
Pump Needle
Screw the ball pump needle into the Schrader valve head.
Moisten the ball pump needle to keep it cool.
Insert the ball pump needle into the ball via the inflation hole.
Carefully hold the Rehook AIR and the ball steady when inflating to prevent the needle from bending.
Inflation
Ensure the valve head is connected to the valve correctly.
Hold the valve head and the valve steady to prevent the tube from being damaged.
Pump the Rehook AIR until the desired pressure is reached.
Once inflated unscrew the valve head and detach quickly to prevent air from escaping.
Frame bracket bolts
For bike with threaded frame holes:
Locate the threaded frame holes on the bike frame. These are often used to attach bottle cages to the bike frame. If a bottle cage is already in place then the bracket can be attached between the cage and the frame.
Place the bolts through the holes of the frame bracket and into the frame.
Lightly thread the bolts until they are both located, then tighten them up.
Rehook AIR can be attached to the bracket and secured with the velcro strap.
Frame bracket ties
For bikes without threaded frame holes:
Select a suitable position on the bike frame to attach the frame bracket. The seat tube is recommended for this.
Place the cable ties through the holes of the frame bracket and around the bike frame.
Thread the cable tie through the hole at the opposite end of the tie, and pull tight.
Cut off any excess cable tie.
Rehook AIR can be attached to the bracket and secured with the velcro strap.
FAQ:
Question: Which bikes can these be used on?
Answer: Rehook AIR is designed to work with any bicycle which uses a Presta or Schrader valve. This could be very narrow racing inner tubes, or chunky mountain bike inner tubes. This can be any type of bike, including e-bikes, Brompton's, road, MTB, hybrid, gravel etc.
Question: Can it be used on flat tyres?
Answer: Yes, it can be used for completely flat tyres, or to add extra pressure to half inflated inner tubes.
For any further questions you can reach us at hello@rehook.bike
